Engine Torque 190 - 382 Nm (S3 %40)
Motor Power Range 2.5 - 9,8 kW
Maximum Static Load 2500kg
Max Capacity 1000kg

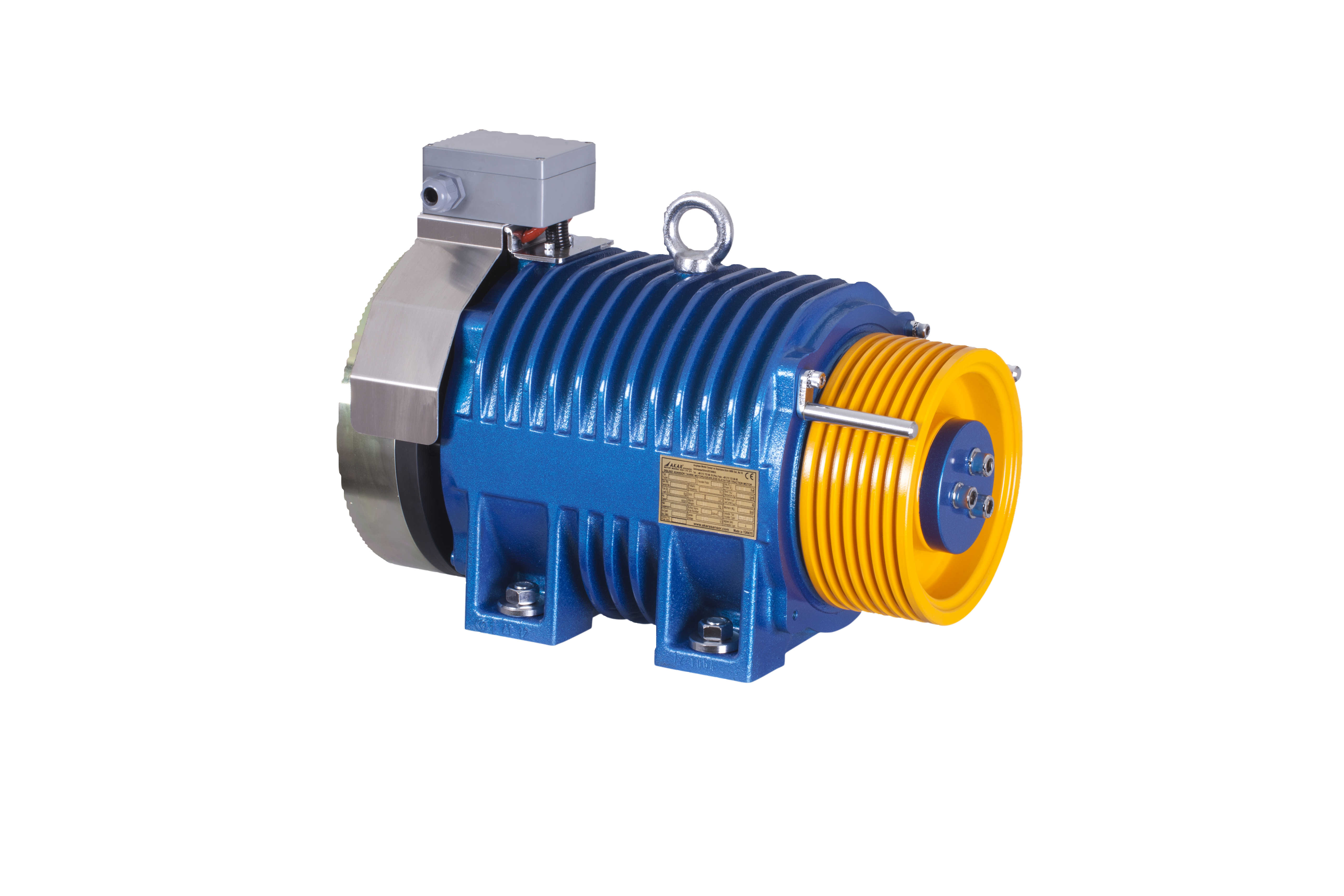

AKAR - SMT 140AC Gearless Motors

It can reach a cabin speed of 1.6 m/s in 1:1 and 2:1 suspension systems.

Thanks to its compact design, it enables use in machine room-less systems.

Maximum driving comfort and minimum cabin noise levels are ensured.

it provides 40% energy saving.

It is environmentally friendly because it does not require the use of oil.

Akar Electromagnetic Brake.

It is in compliance with EN 81-20 and EN 81-50 standards

Brake Voltage 198V DC
Number of Poles 20
Motor Voltage 360V
Frequency 50Hz
