Engine Torque 3500 - 4100 Nm (S3 %40)
Motor Power Range 7,5 - 45,0 kW 20
Max Static Load 13000kg
Max Capacity 6500kg

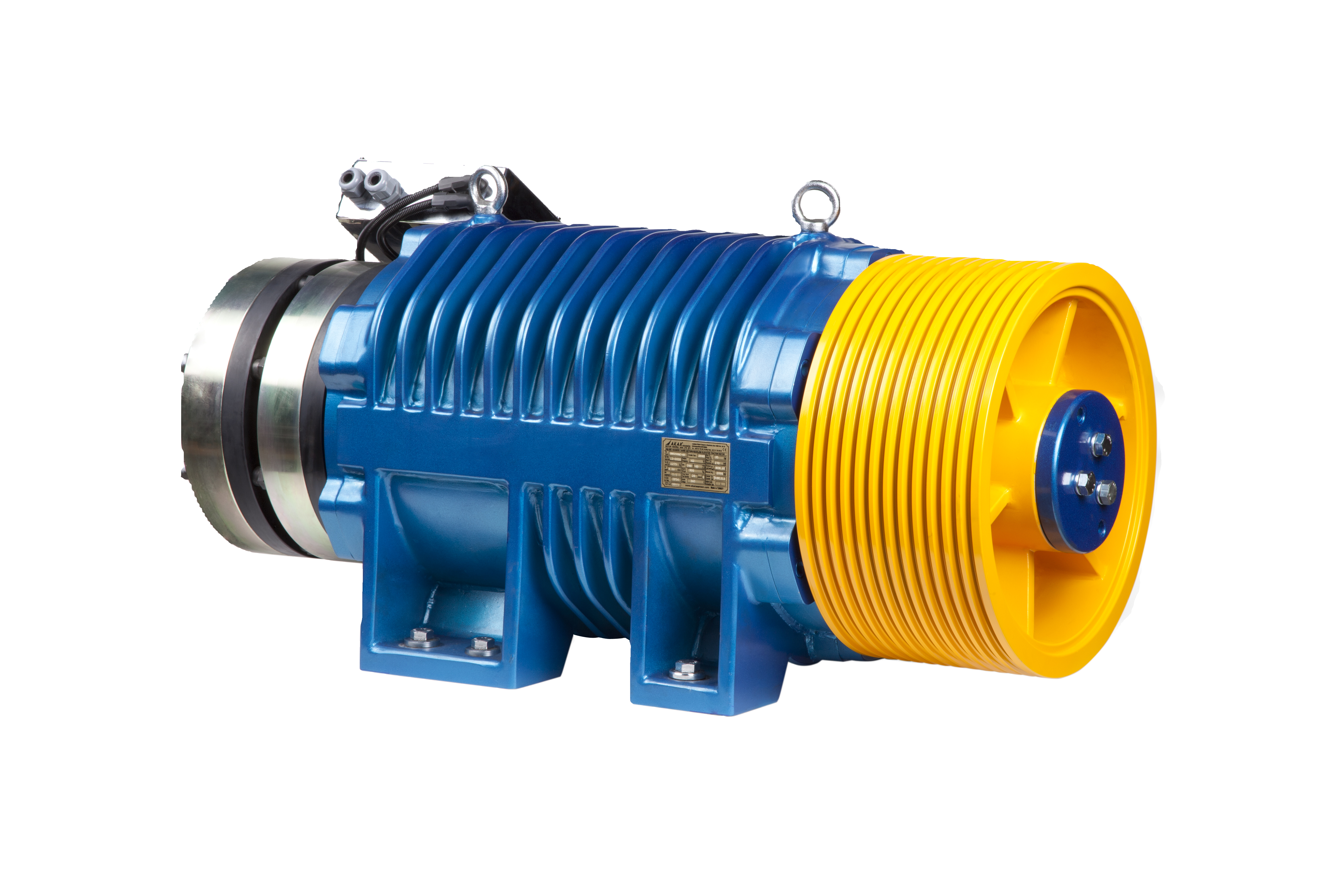

AKAR - SMT 250AC GEARLESS MOTORS

It can reach a cabin speed of 4 m/s in 1:1 and 2:1 suspension systems.

In 1:1 suspension systems, it can reach a carrying capacity of 1600 kg.

In 2:1 suspension systems, it can reach a carrying capacity of 3500 kg.

In 4:1 suspension systems, it can achieve a carrying capacity of 7000 kg.

Thanks to its compact design, it enables use in machine room-less systems.

Maximum driving comfort and minimum cabin noise levels are ensured.

it provides 40% energy saving.

It is environmentally friendly because it does not require the use of oil.

Akar Electromagnetic Brake.

It is in compliance with EN 81-20 and EN 81-50 standards

Brake Voltage 198V DC
Number of Poles 20
Motor Voltage 360V
Frequency 50Hz
